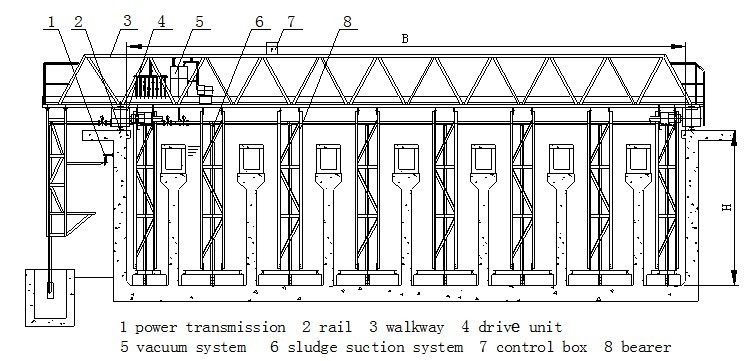

> Traveling Bridge Suction Scraperve/Scraper
□ Adaptable for rectangular clarifier with 4～
□ One central drive unit drives the wheel in each side
□ Patent rail clamping and off tracking resistant device against hitting the rail
□ The sludge can be removed by air lifting or sand pumps
□ Control box controls the equipment movement automatically
□ Power supply : safe slide wire, flexible cable and bracket
□ Materials of construction: carbon steel epoxy painted, carbon steel hot dip galvanization, stainless steel SS304 or SS
□ Optional accessories: steel rail, etc.

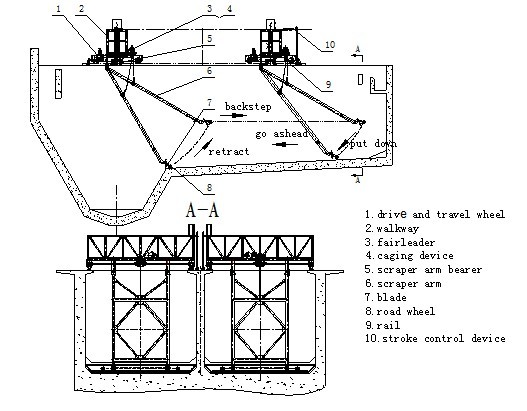

□ Adaptable for rectangular clarifier with 4～
□ Central drive unit drives the wheel in each side
□ Patent rail clamping and off tracking resistant device against hitting the rail
□ Gear reducer type switch box realizes the accurately and reliably movement of lifting rake and lying rake
□ Control box controls the equipment movements automatically
□ Power supply : safe slide wire, flexible cable and bracket
□ Materials of construction: carbon steel epoxy painted, carbon steel hot dip galvanization, stainless steel SS304 or SS
□ Optional accessories: steel rail, etc.
